Oxy-5 Pediatric oximeter

Pediatric oximeter OXY-5

Suitable for pediatric patients to monitor pulse oxygen saturation and pulse rate through patient’s finger (8-16mm finger) in medical and hospital environments.


Main features

SpO2 and pulse rate measurement

bargraph of pulse rate

perfusion index display.
P.I. is a numerical value that indicates the blood perfusion condition at the sensor site.
It is a relative value that varies from patient to patient and from measuring site

excellent accuracy from the first reading in few seconds thanks to a unique noise rejection capability feature

extra stability against motion during measurement (finger bending, hand movement, button pressing)

automatic power on and power off when finger is out for more that 8secs

low voltage alarm display

9 language manual (GB, FR, IT, ES, DE GR, PT, PL, Arabic)

50 hours working time with full batteries

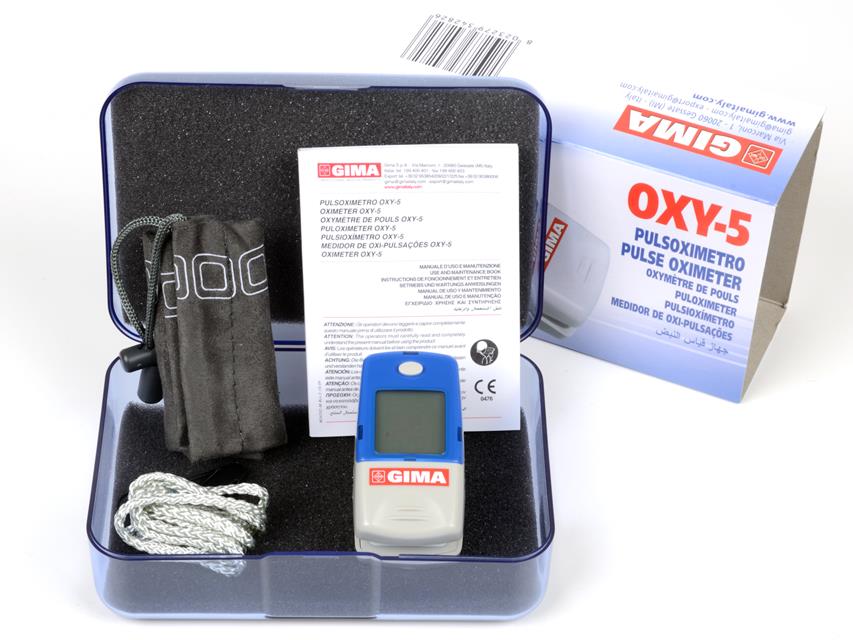

supplied in plastic case with batteries and pouch

Technical Specifications:

Pulse rate:

  range: 30-240 bpm

  accuracy: ± 2 bpm (2%)

  resolution: 1bpm

SpO2:

  range: 35%-99%

  accuracy: ± 2% (75-99%)/± 3% (50-75%)

  resolution: 1%

Perfusion: Index:

  range: 0-20%

  accuracy: ± 0.1% (0.2-2%)/± 0.2% (2-10%)

  resolution: 0.1%

Alarm: SpO2: low limit 90%

Pulse rate: low: < 50 bpm - high > 120 bpm

Power: 1.5V (AAA size) alkaline battery x 2

Norms: IEC 60601-1-2 Class II

LCD Display: oxygen saturation, pulse rate, low battery indicator

Size: 6.6 x 3.6 x 3.3 cm

Weight: 60 g including batteries
