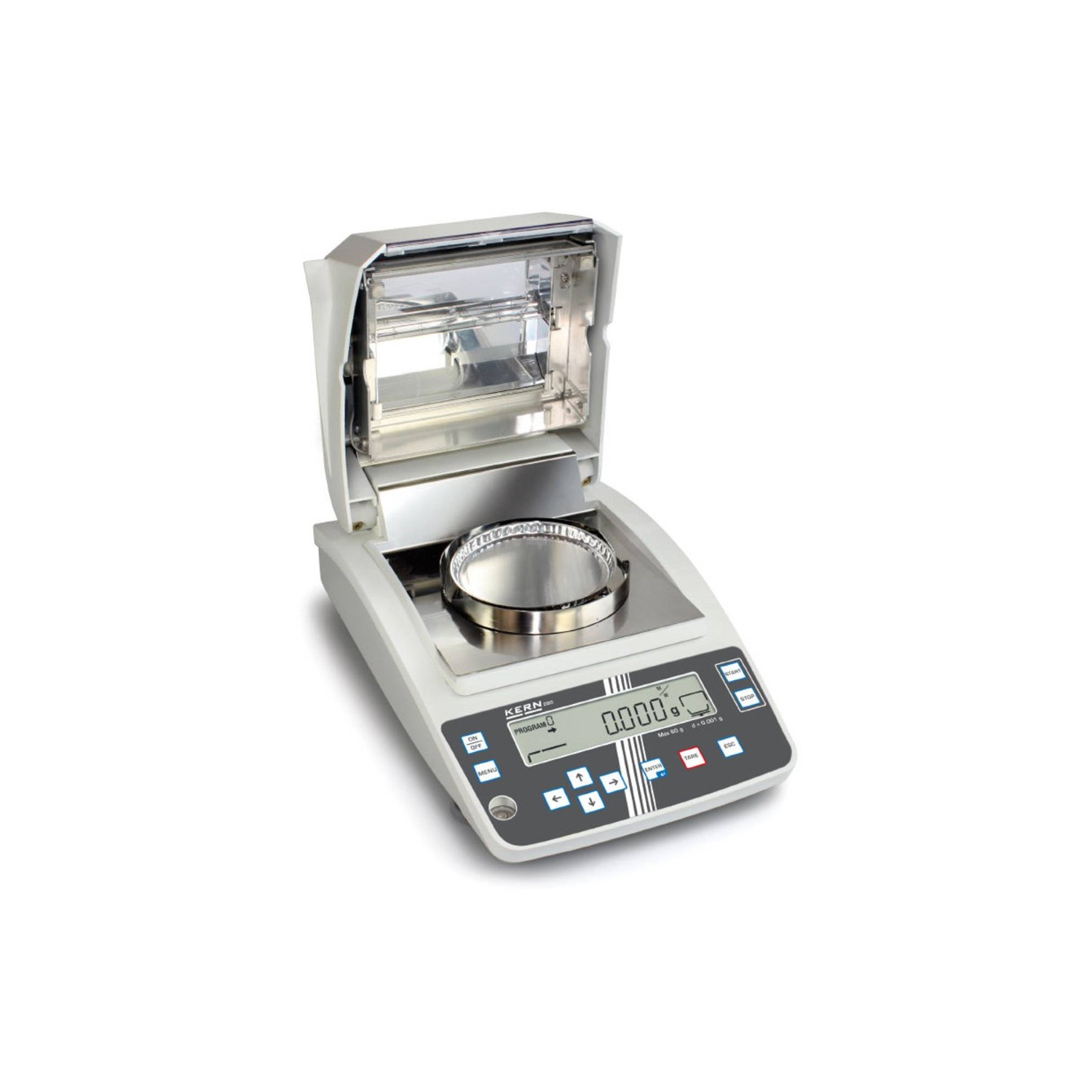

Moisture analyzer KERN KERN DBS 60-3

Moisture analyser KERN DBS 60-3

Moisture analyzer with high-quality single-cell weighing system for outstanding stability, reliability, and response speed.

Features

Suitable for samples with low moisture content, e.g., plastics.

Backlit graphic display, digit height 15 mm.

1 Drying process active

2 Previous drying time

3 Current temperature

4 Unit for displaying the results

5 Current moisture content in %

6 Active heating profile

Halogen quartz glass heater 400 W.

Excellent temperature control thanks to halogen technology, suitable for temperature-sensitive samples.
Observation window above the sample, useful during initial setting.

Internal memory for automatic sequence of 10 complete drying processes and 100 drying processes carried out.
The last value measured remains on the display until it is replaced by a new measurement.

Password protection to prevent manipulation of stored settings, data, etc.

Sample description for up to 99 samples, 2 digits, freely programmable, and is printed in the measuring protocol.

Date and time display as standard.

USB data interface for transferring weighing data to the PC, printer etc.

10 sample plates included.

Protective working cover included with delivery.

Specifications:
Readability: 0,001 g/0,01 %

Weighing capacity [Max]: 60 g

Reproducibility weight of sample 2 g: 0,15 %

Reproducibility weight of sample 10 g: 0,02%

Display after drying:

Moisture [%] = Moisture content (M) from wet weight (W): 0 - 100 %

Dry content [%] = Dry weight (D) from W: 100 - 0 %
ATRO [%] [(W-D): D] · 100% 0 - 999 %
Moisture content (M): Absolute value in [g]

Temperature range: 50C - 200C in steps up to 1C

Drying modes: Standard drying, Gentle drying, Rapid drying, Drying in levels

Switch-off criteria:

Automatic unrestricted switch-off (Selectable loss in weight 0,01% - 0,1% in 30 s)

Time controlled switch-off (1 min - 12 h)

Manual switch-off at the press of a button
Recall of measurement/Log output: Interval can be set from 1 s - 10 min (Only when used with printer or PC)
