B/W ultrasound Eco1 with 1 probe connector
It includes CPA/DPD
- Description
Description

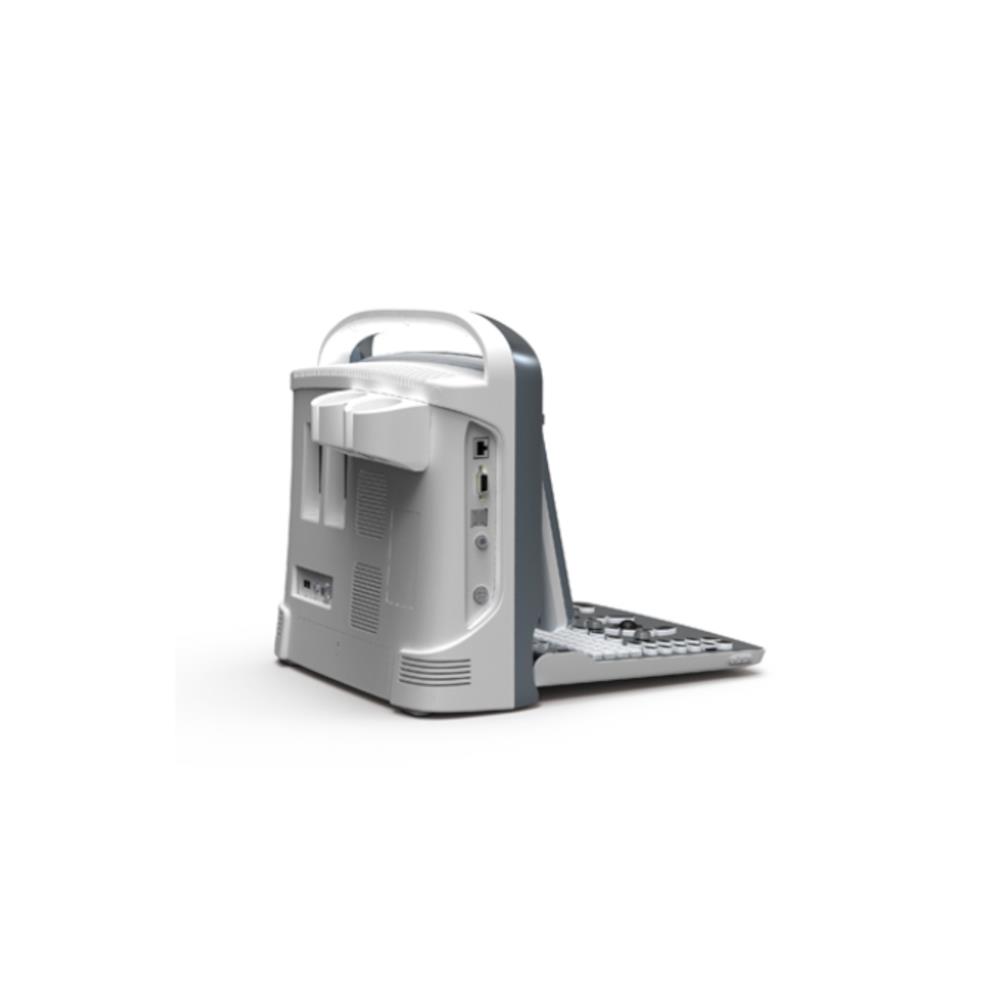

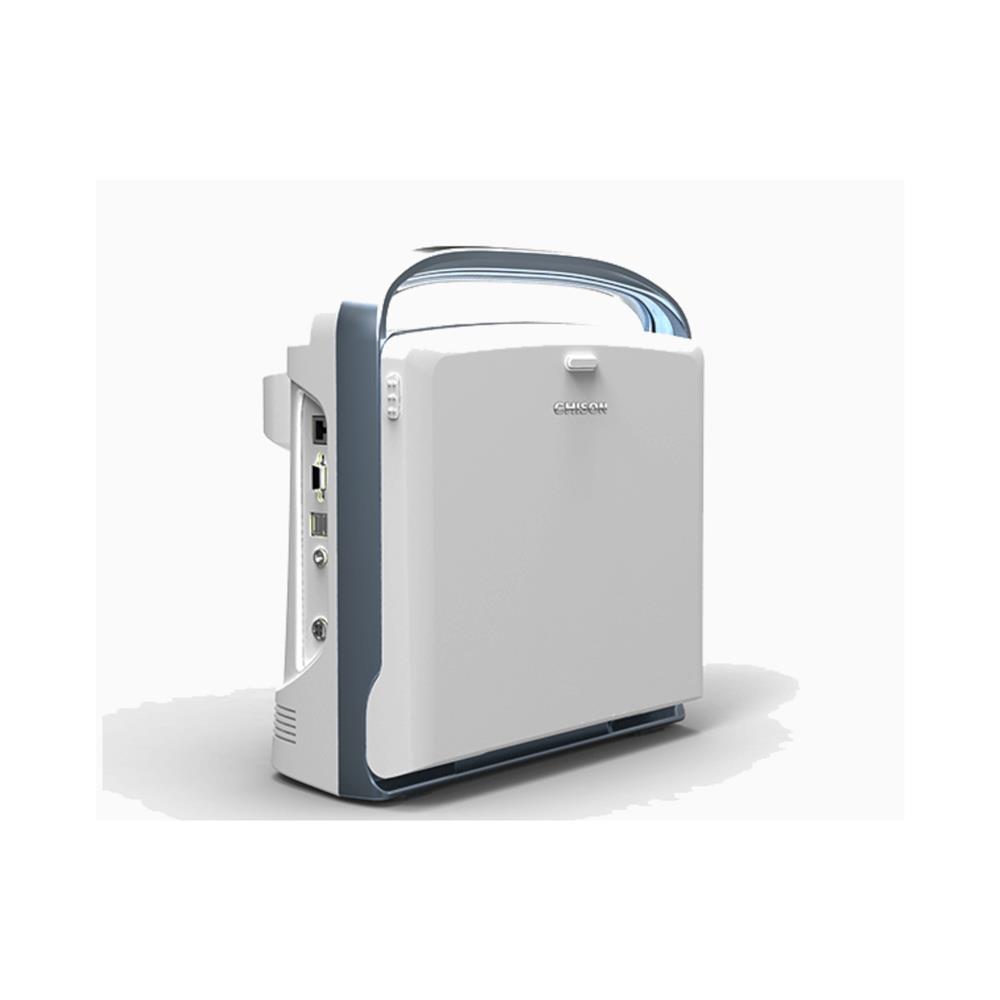

CHISON ECO1 Portable Black & White Ultrasound System
The CHISON ECO1 is a next-generation portable black & white ultrasound system designed to deliver reliable diagnostic performance, ease of use, and excellent image quality. It provides a comprehensive solution for the daily needs of physicians, clinics, hospitals, and primary healthcare facilities.
Equipped with advanced imaging technologies such as Harmonic Imaging and Multiple Beam Forming, the ECO1 delivers high-resolution images with enhanced contrast and superior spatial resolution, enabling more accurate assessment of anatomical structures, even in demanding clinical examinations.
Its built-in rechargeable battery provides up to 2 hours of continuous operation, allowing the system to be used in both fixed and mobile healthcare environments, including home healthcare visits.
The CHISON ECO1 is compatible with Convex, Linear, and Endocavity (transvaginal/transrectal) transducers, making it suitable for a wide range of applications, including general imaging, vascular, musculoskeletal, urological, and gynecological examinations.
Ergonomic, user-friendly software with an intuitive interface and streamlined workflow.
Imaging modes: 2D (B Mode), Dual B (2B), Quad B (4B), M Mode, B/M Model
256-level grayscale imaging.
Colorized 2D imaging with 10 selectable color maps.
Automatic image optimization via AIO (One-Touch Optimization).
Four-level digital zoom.
Maximum scanning depth: 24 cm.
Single transducer connector.
Compatible with transducers operating at frequencies from 2.5 to 11 MHz.
Compatible with Biopsy Guide Kit.
12-inch high-resolution LED display (1024 ? 768) with adjustable tilt (0°–30°), wide viewing angle, and anti-glare filter.
Full alphanumeric backlit keyboard.
Comprehensive measurement packages for all medical specialties.
Measurement functions including
Area
Volume
Angle
Percentage of stenosis
Cine Loop function with storage and review of up to 1,600 frames (90 seconds).
Adjustable number and position of focal zones (Focus Number/Position).
Annotation with predefined comments and Body Marks for quick examination documentation.
Comprehensive patient data, image, video, and report management.
Advanced Imaging Technologies:
The CHISON ECO1 incorporates advanced image processing technologies that significantly enhance diagnostic performance:
Spatial Compound Imaging, which combines images acquired from multiple scanning angles to improve visualization in challenging acoustic windows while maintaining a high frame rate.
SRA (Speckle Reduction Algorithm), an advanced speckle noise reduction technology that improves image clarity and tissue uniformity without compromising image detail.
Connectivity:
Three USB 3.0 ports.
LAN (Ethernet) port.
VGA output.
BNC output.
Foot Switch connector.
STC (Segment Tissue Control) technology.
Data Management:
Integrated 8 GB hard disk.
Storage and archiving of patient examinations, images, video clips, and reports.
Data export via USB Flash Drive.
Full A4 report printing, including patient information, images, measurements, and diagnostic findings.
Compatible with thermal, laser, and inkjet printers.
Design & Portability:
Built-in rechargeable battery with up to 2 hours of operating time.
Low power consumption.
Can be mounted on an optional CHISON trolley or transported in a dedicated carrying case.
Ideal for use in private practices, hospitals, mobile healthcare units, and home care services.
Technical Data:
Dimensions: 33.5 x 15.5 x 35 cm
Weight: 6 kg
Display: 12" LED, 1024 ? 768 resolution
Power Supply: AC 100–240 V, 50/60 Hz
Software Languages: English, Italian, French, Spanish, German, Czech, Turkish, Chinese, and Russian
User Manual Languages: English, Italian, and Chinese
Note
The CHISON ECO1 is supplied without an ultrasound transducer. The appropriate transducer is selected separately according to the intended clinical application and examination requirements.
