Gastrogenius breath monitor for combined methane, hydrogen and oxygen measurement

Gastrogenius breath monitor for combined methane, hydrogen and oxygen measurement
Gastrogenius is a breath monitor that can help detect food malabsorption, sugar intolerances and SIBO.

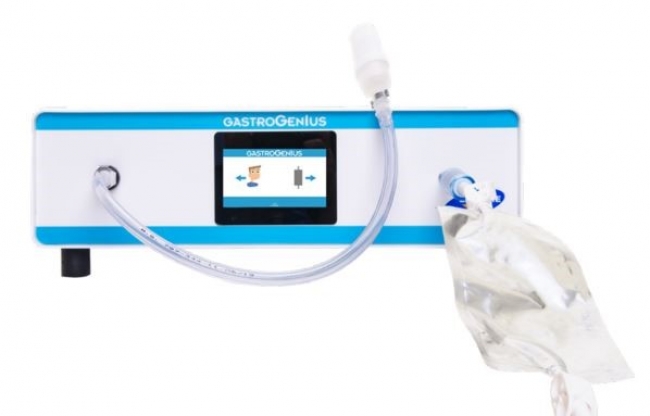

Gastrogenius is a portable desktop monitor which measures hydrogen (H2), methane (CH4) and oxygen (O2) levels in expired breath samples in response to appropriate substrates.
It helps health professionals to aid in the detection of gastrointestinal disorders like food malabsorption, sugar intolerances and Small Intestinal Bacterial Overgrowth (SIBO) in a non-invasive way.

A group of patients do not produce hydrogen and would not be detected by Hydrogen Breath Testing (HBT) alone. By performing Hydrogen and Methane Breath Testing (HMBT) using Gastrogenius, can help detect those patients, who don’t produce hydrogen but methane instead or a combination of both.

The additional O2 reading in combination with a real time traf?c light dial and smiley face system helps motivate patients to provide an end-tidal sample.
Gastrogenius provides automatic O2 correction for more accurate results. With instant results, you can save time, without having to wait for lab results.

Some LABORIE products may not be available in certain regions.

No warm up time with only a 2 minute start up time

Laser methane sensor technology

Hydrogen and Methane Breath Testing (HMBT) with instant results to help you save time

Enhanced patient comfort with a wide range of consumables for different patient groups

Breath bag option makes it possible to test multiple patients at the same time

Breath bag option allows to take samples in a different room or at a different location

Automatic O2 correction for more accurate results

Real time trafic light dial and smiley face system to motivate patients

Hydrochart software enables data analysis, easy storage and report printing

Simple calibration only required every month

Maintenance reminders

Procedure Type: Hydrogen and Methane Breath Testing

Concentration Range: (CH4): 0-200 ppm (H2): 0-200 ppm (O2): 14-23%

Warm-up Time: 2 minutes

Calibration Frequency: Every 4 weeks

Display: Full color touchscreen

Detection Principle: Electrochemical sensor (O2 & H2); Laser (CH4)

Accuracy:

CH4 Resolution: 1 ppm

CH4 Accuracy: ± 10% of reading

CH4 Repeatability: < 5% difference on consecutive readings

H2 Resolution: 1 ppm

H2 Accuracy: ± 10% of reading

H2 Repeatability: < 5% difference on consecutive readings

O2 Resolution: 0.1%

O2 Accuracy: ± 10% of reading

O2 Repeatability: < 5% difference on consecutive readings

Temperature Range

Operating: 15-35°C (59°- 95°F)

Storage: 0-40°C (32°- 104°F)

Pressure Range

Operating: 900-1100mbar

Storage: 800-1200mbar

Humidity Range

Operating: 30-75% non-condensing

Storage: 15-90% non-condensing

Sensor Operating Life

CH4: 5 years

H2: 2 years

O2: 2 years

Dimensions: 474 x 310 x 167 mm

Weight: 8kg

Monitor Construction: Aluminum Case

Classification:

Class I ME equipment: (externally powered)

Type BF applied part

Method of sterilization (not suitable for sterilization)

Not suitable for use in an oxygen rich environment

Intended for continuous use

Response Time: 45 seconds

Warranty: Unit and sensors 2 years
